Screw-in Cartridge Swivel

Torque chart



Size Ft-Lbs Nm
06 125 170 Nm
08 215 290 Nm
10 300 405 Nm
12 390 530 Nm
16 490 665 Nm
20 800 1080 Nm
24 900 1215 Nm
32 1000 1350 Nm
Dry torque • Lubricate external O-ring

Seal kit replacement

Coming soon.

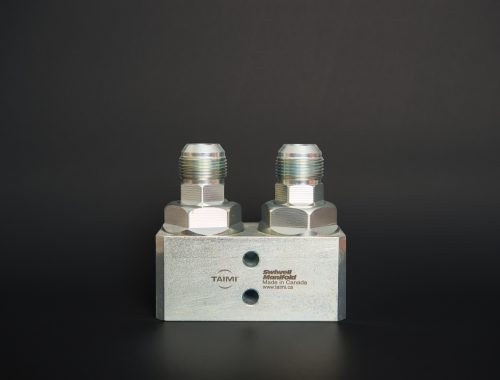

Custom manifold for Taimi cartridge swivels

Custom Swivel Manifold

Cartridge torque

Size Ft-Lbs Nm
06 125 170 Nm
08 215 290 Nm
10 300 405 Nm
12 390 530 Nm
16 490 665 Nm
20 800 1080 Nm
24 900 1215 Nm
32 1000 1350 Nm
Dry torque • Lubricate external O-ring

Seal kit replacement

Coming soon.

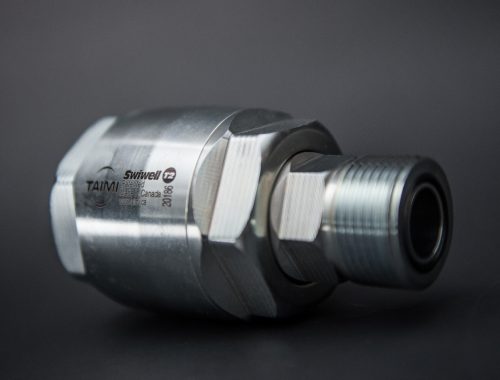

In-line Swivel

Torque chart

Coming soon.

Seal kit replacement

Coming soon.

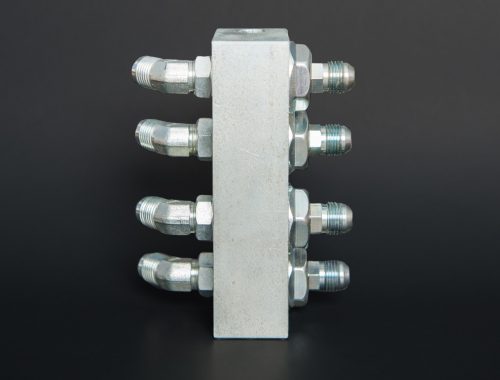

Dual Swivel Manifold

Cartridge torque

Size Ft-Lbs Nm
06 125 170 Nm
08 215 290 Nm
10 300 405 Nm
12 390 530 Nm
16 490 665 Nm
20 800 1080 Nm
24 900 1215 Nm
32 1000 1350 Nm
Dry torque • Lubricate external O-ring

Remplacement des seal kits

Coming soon.

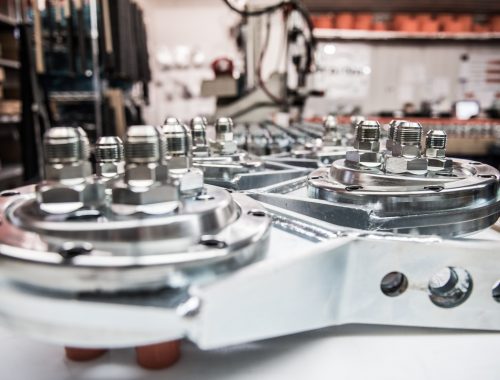

Swiroll - Spherical Hydraulic Joint

Cartridge torque

Size Ft-Lbs Nm
06 125 170 Nm
08 215 290 Nm
10 300 405 Nm
12 390 530 Nm
16 490 665 Nm
20 800 1080 Nm
24 900 1215 Nm
32 1000 1350 Nm
Dry torque • Lubricate external O-ring

Seal kit replacement

Coming soon.

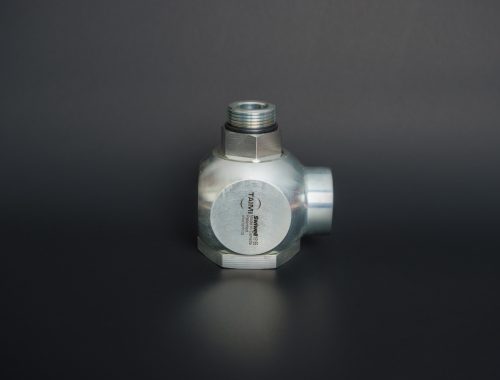

90° Swivel - Compact Series

Torque chart

Coming soon.

Seal kit replacement

Coming soon.

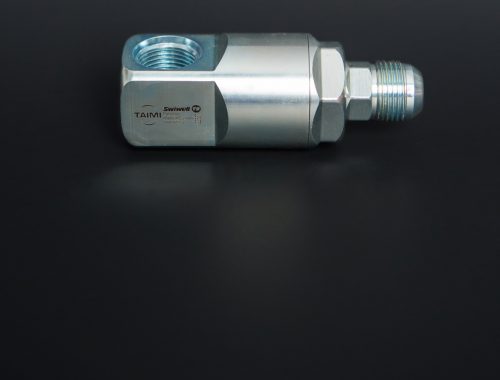

90° Swivel - Standard Series

Torque chart

Coming soon.

Seal kit replacement

Coming soon.
